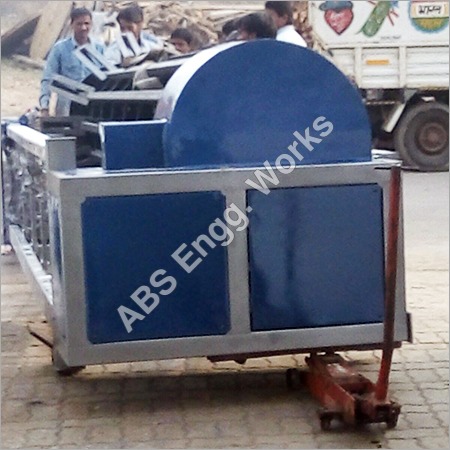

High Tech Sectional Warping Machines

Get a Price/Quote

MOQ : 1 Carton

High Tech Sectional Warping Machines Specification

Frequency
50/60 Hz

Hook
Automatic Yarn Hook

Product Type
Sectional Warping Machine

Material
High-grade Steel / Alloy

Machinery Type
Textile Warping Machinery

Capacity
Up to 600 meters/min

Voltage
380-415V (3 Phase)

Power
7.5-18.5 kW

Dimension (L*W*H)
Customizable, typically 8500 x 4000 x 2700 mm

Weight
Approx. 8000-12000 kg

Color
Grey with Blue Accents

Creel Type
Fixed and Movable Creel Available

Precision
±0.02 mm layer-to-layer accuracy

Warping Tension Range
Up to 5000 N Adjustable

Application
For weaving preparation and warping all types of yarn

Power Supply
AC

Drum Diameter
700-1000 mm

Safety Features
Emergency Stop, Safety covers, Overload Protection

Yarn Count Range
6s to 120s Ne

Control System
PLC Controlled with HMI Touch Panel

Number of Sections
6-120 Sections depending on model

Beam Flange Diameter
750-1250 mm

High Tech Sectional Warping Machines Trade Information

Minimum Order Quantity
1 Carton

Payment Terms
Others

Main Domestic Market
All India

About High Tech Sectional Warping Machines

We are a reliable manufacturer, exporter and supplier of the finest quality High Tech Sectional Warping Machines. These machines are manufactured at our advanced production set up using top notch quality components and innovative techniques under the observation of deft professionals as per set industry norms. Provided machines are used to produce repeatable warp without any obstacle. In addition, we provide these High Tech Sectional Warping Machines to our precious patrons at rock bottom rates.

Features:

Excellent functioning
Sturdy design
Precisely engineered
Less power consumption

Advanced Control System for Seamless Operation

The integrated PLC control with an HMI touch panel enables operators to manage all warping parameters precisely and efficiently. Real-time monitoring and adjustment capabilities reduce errors and improve workflow reliability, ensuring consistent and high-quality warping output for all yarn counts between 6s and 120s Ne.

Customizable Design for Versatile Industrial Needs

Each machine can be tailored to meet specific requirements, with adjustable drum and beam flange diameters, section numbers, and dimensions. Options for fixed or movable creels expand the versatility, allowing users to optimize space and enhance productivity based on their factory layout and production goals.

Comprehensive Safety and Efficiency

Equipped with essential safety featuresincluding emergency stops, safety covers, and overload protectionthese warping machines support a safe working environment and reduce machine downtime. Their robust construction and high-speed capacity (up to 600 meters/min) maximize throughput and operational reliability.

FAQs of High Tech Sectional Warping Machines:

Q: How does the PLC-controlled HMI touch panel enhance the operation of sectional warping machines?

A: The PLC-controlled HMI touch panel provides an intuitive interface, allowing operators to configure and monitor all warping parameters efficiently. This system streamlines the setup, enables real-time adjustments, and helps maintain high precision and consistency throughout the warping process.

Q: What types of yarn can these sectional warping machines handle during weaving preparation?

A: These machines are designed to process all yarn types within the count range of 6s to 120s Ne, making them suitable for a broad spectrum of textile applications from fine filaments to heavier yarns.

Q: When should a manufacturer choose a machine with a higher number of sections?

A: A manufacturer should opt for a higher number of sections (up to 120) when dealing with complex warping requirements, larger warp beams, or diverse yarn patterns. More sections allow finer subdivision, improving preparation efficiency for high-volume or intricate textile production.

Q: Where are these high tech sectional warping machines typically used?

A: These machines are commonly utilized in industrial textile manufacturing units in India and worldwide as part of the weaving preparation process, servicing exporters, manufacturers, and suppliers requiring rapid and precise warping operations.

Q: What is the usage process for preparing yarn on this warping machinery?

A: The process involves placing yarns onto the creel, threading them through the automatic yarn hook, and using the HMI panel to set desired machine parameters. The yarns are then accurately wound onto the drum section by section, ensuring layer-to-layer precision and tension appropriate to the selected yarn count.

Q: What benefits do the safety features of these machines offer to operators?

A: Features such as emergency stop buttons, safety covers, and overload protection safeguard operators from potential hazards, minimize the risk of accidents, and protect the machinery from excessive strain or improper operation, ensuring a safer and more reliable textile manufacturing environment.
